Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
Contact Now
    Buy cheap Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine from wholesalers

    Buy cheap Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine from wholesalers
    • Buy cheap Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine from wholesalers
    • Buy cheap Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine from wholesalers
    • Buy cheap Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine from wholesalers
    • Buy cheap Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine from wholesalers
    • Buy cheap Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine from wholesalers

    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    Ask Lasest Price
    Brand Name : BlueRay
    Model Number : DCS-50SK
    Certification : CMC
    Supply Ability : 50 Set/Sets per Month 25kg bags granular prill urea vertical packing machine
    Price : $5,000.00 - $15,000.00 / Set
    Delivery Time : 30-35 working days
    • Product Details
    • Company Profile

    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    Product Description

    1, Product Name: Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    2, Item: DCS-50SK

    Application materials
    small size granular materials such as compost fertilizer, urea etc
    Display Resolution
    5g, 10g
    Weighing Range
    5-50kg/bag or customized needs
    Precisions
    +/-(0.1-0.2)% FS
    Packing Capacity
    500-600 bags/hour
    Dimention(L*W*Hmm)
    4000*1200*3700mm, the size can be customized according to your site
    Power Supply
    AC220V/380V, 50HZ, 1P/3P, customized available
    Air Source
    0.5-0.7 Mpa
    Power
    3KW
    Working Temperature
    -10~40 ℃
    Relative Humidity
    ≤90% RH(Non-condesing)
    Application
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    Application Materials(products)

    Gravity feeding type packing machine suit for pack small size granular or powder with good flow,such as plastic particles,feed, fertilizer( urea etc), grain,sugar, bean, rice etc

    Application Bags(open mouth bags)

    This bagging machine is especially designed for pack materials(products) into open mouth bags,such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc

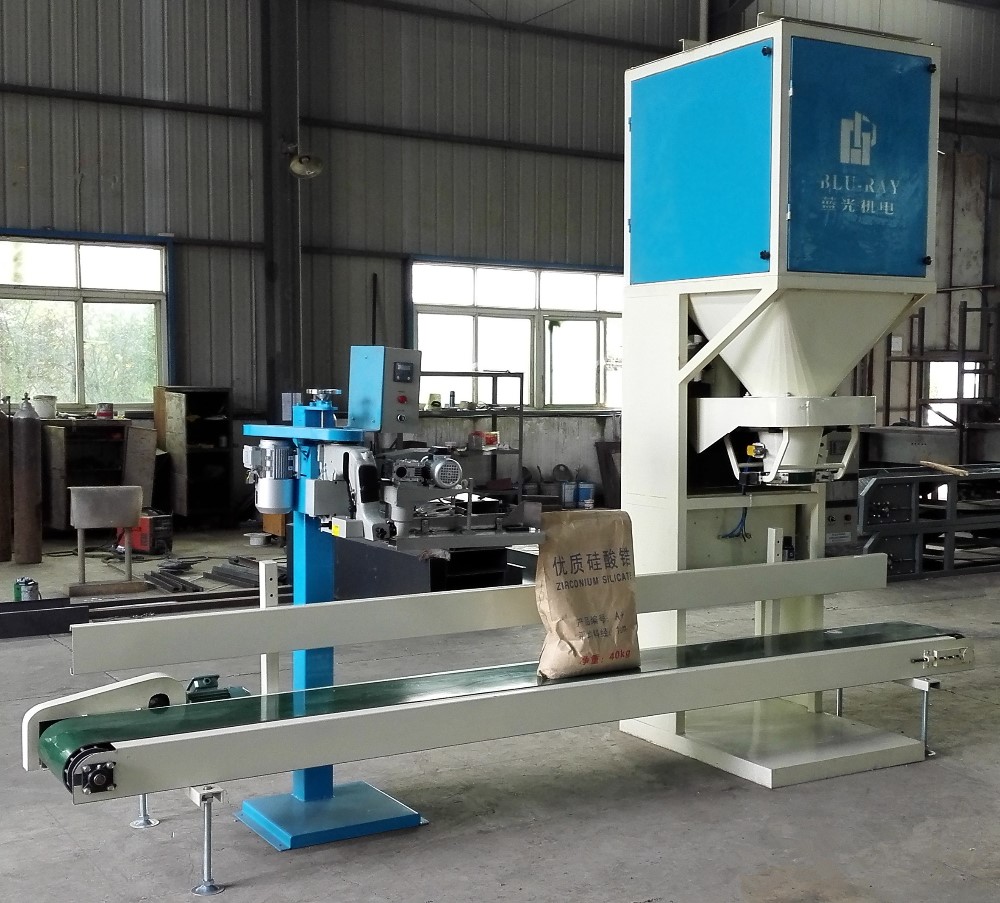

    Detailed Images
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine
    Working Process
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing

    Advantage
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    Control Box

    +Full touch screen panel
    +PLC system
    +Photoelectric sensor switch
    +English/Chinese view
    +Easy operation interface
    +Proction data record & print
    +Connect computer available

    SIX pieces of Load Cell

    (weighing sensor)

    +Famous brand load cell, more stable
    +Installed 3pieces load cell, high weighing accuracy


    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    Three-travelling Air Cylinder

    +Control by the PLC system and three-travelling
    air cylinder, feeding speed with fast-midium-slow

    Automtic Bag Clamp/Loose Mechanism

    +Photoelectric sensor switch
    +Big force 2pcs air cylinder control
    +Automatic bag clamp and loose
    +Automatic materials dischage
    +Suit for different bag size

    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    Dust Air Outlet

    +All of our packing machine will install air outlet
    +Connect your dust removal device, making the
    working environment more hygienic
    +Add our pulse dust collector,
    dust collection≥99.8%

    Automatic Sewing Machine

    +Automatic bag top folding device(opitional)
    +Photoelectric sensor switch
    +Automatic knife thread cut
    +Single needle double thread chain
    +Production data record & print
    +Thread end length ajustable
    +Bag sewing heigth adjustable
    +With automatic bag conveyor

    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine
    Packing & Delivery
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine
    Related Products
    Item
    DCS-50WL
    DCS-50L
    DCS-50SK
    Application materials
    Small size granular or powder with good flow
    Display Resolution
    5g, 10g
    Weighing Range
    5-50kg/bag or customized
    Precisions
    +/-(0.1-0.2)% FS
    Packing Capacity
    200-300 bags/hour
    360-480 bags/hour
    500-600 bags/hour
    Dimention(L*W*Hmm)
    3000*1100*2600
    3000*1100*3200
    4000*1200*3700
    Power Supply
    AC220V/380V, 50HZ, 1P/3P, customized available
    Air Source
    0.5-0.7 Mpa
    Power
    3KW
    3KW
    6KW
    Working Temperature
    -10~40 ℃
    Relative Humidity
    ≤90% RH(Non-condesing)
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    DCS-50WL(click ☝)

    Non weighing hopper gravity feeding type packing machine

    packing speed 200-300bags/hour

    DCS-50L(click ☝)

    Single weighing hopper gravity

    feeding type packing machine
    packing speed 360-480bags/hour

    DCS-50SK(click ☝)

    Dual weighing hopper gravity feeding type packing machine
    packing speed 500-600bags/hour

    Our Company
    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    Jiangxi Blue Ray M & E Co., Ltd

    -15 years professional manufacturer of packing machines, sewing/heat sealing machine, automatic palletizer

    machine, elevator/conveyor etc
    -More than 10 person engineers team, OEM service and customized design are available
    -3000㎡ working shop, high production capacity
    -Sales and after sales team 24 hours online service

    Flowing chart:

    Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service

    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    Certificate

    We are Alibaba Gloden Supplier with assessment and the BV certificate, CE certificate and CMC (China Metrology Certification)

    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    Exhibition

    We have attend many trade shows in China mainland and overseas, such as Canton Fair, HK Source Fair, IPPE, China

    Feed Expo etc.

    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    What's customers say about us

    Our packing machines have exported to many countries, such as USA, Australian, Korea, Philippines, Malaysia,

    Oman, Mongolia, Iraq, Iran, Bulgaria etc. They all choose our packing machine, sewing machine and other equioments.

    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    Engineering Case

    We can provide all equipments of packaging line, including the batching system, packing machines(semi-automatic/full automatic), hopper, conveyor(2/3/4/5/8 meters etc), various item of elevator(belt/screw/bucket elevator etc),automatic bag stacking/palletizer machine, air compressor, sewing/heat sealing machine, thread for sewing and so on.

    We have made many cases of packaging solution for feed, fertilizer, flour, starches, grain, soil, stone, manure, chemical,

    mining, coal, cement, lime powder etc industries.

    Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

    FAQ:

    Q1: How could I choose the right packing machine?

    A: We have various item of packing machine to suit for pack different materials(products), just let me know your

    product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are availbale, we have more than 10 person engineers team and R&D team.

    Q2: What's service you can provide if we buy your machine?

    A: 1, One year quality guaranteed, during this guarantee period, no matter what’s kind of parts damaged, we will provide

    free change for you. All equipment for more than a year warranty, exchange of damaged parts, only charge a cost of

    spare parts.

    2, We will provide you the guide service on the operation of the machine.

    3, If required, we will dispatch technician to your country for installation guide, commissioning& adjusting the machine and training the workers on conditon that you need affords all cost from China to your company including food,

    accommodation, transportation etc and extra USD80 per day.

    Q3: What's your terms of payment?

    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you

    pay the balance.

    Q4: What is your terms of delivery?
    A: EXW, FOB, CFR, CIF

    Q5: How about your delivery time?
    A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends on the

    items and the quantity of your order.

    Q6: Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery
    Q7: How do you make our business long-term and good relationship?
    A: 1, We keep good quality and competitive price to ensure our customers benefit
    2, We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
